Welcome everyone to this post. This is my first in a long time and also my first since I decided to take my blog from distill to quarto.

Today, we are going to create a complete NBA players squad poster using the combination of R and Bash languages.

Tis kind of languages mixing is made possible by the binding capabilities of quarto engine to run blocks of code from multiple languages using the Jupyter engine1.

Since we are using Bash alongside R, an easy solution would have been to use system to execute the Bash code.

system(command, ...) invokes the OS command specified by the command

Retrieve API Data

The first part of any data viz is about data and its wrangling. In our case, we won’t need to wrangle it because the data will be cleaned through API. Of course, we could have scraped the teams data from official NBA site or directly from the ESPN site. But this alternative would have been taken time. Fortunately, ESPN offers developers various API endpoints. There are many resources along the web, describing them and their uses. Here is an exhaustive list of GitHub pages related to topics:

List of NFL API Endpoints https://gist.github.com/nntrn/ee26cb2a0716de0947a0a4e9a157bc1c
ESPN’s hidden API endpoints https://gist.github.com/akeaswaran/b48b02f1c94f873c6655e7129910fc3b

The first link is limited to NFL endpoints but can be adapted for other sports leagues.

For example, if we want to retrieve the list of all NBA athletes2, the API endpoint is: http://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/athletes/4277869?lang=en&region=us.

If you open the link in your favorite web browser, you will see a preview of the JSON response.

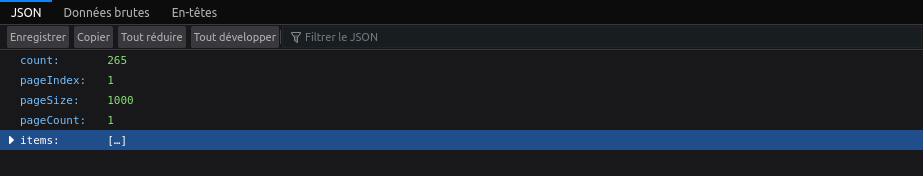

Overview NBA athletes API response

If you expand the items element, you will have an array of all the 265 athletes.

as of 09.22.2022

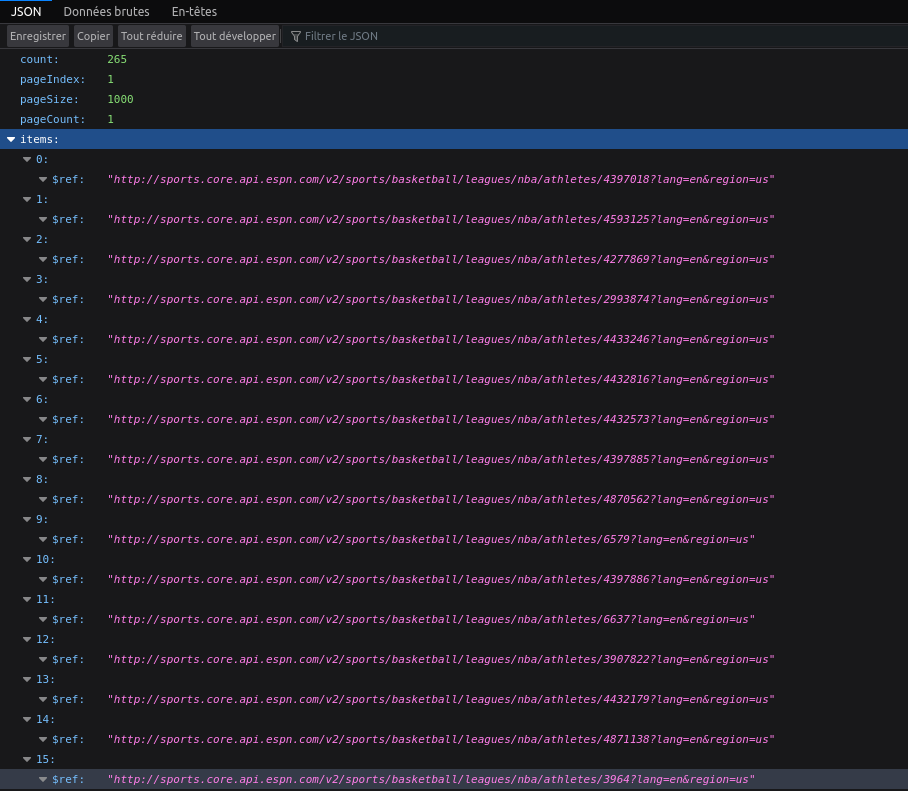

Overview NBA athletes API response with items expanded

Similarly, if you want to retrieve the list of all the 30 NBA teams links, there is a specific API endpoint for that: https://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/teams.

An API endpoint returning more information about teams is also available: http://site.api.espn.com/apis/site/v2/sports/basketball/nba/teams.

We will use this one and dig deeper into this information in the next section.

Team Information

For team information data, we will use an API endpoint with the team number as an argument. As there are 30 teams in National Basketball Association, to get team information we will just need to make the proper request with the appropriate team id. So let’s dive into our data-collecting process for the team with id 1. We will just have, in the end, to wrap all the processes in a function to automate the workflow. As the result of an API request is a JSON3, we will use the rjson package and particularly the fromJSON function of that package. fromJSON takes several arguments:

  • json_str: a JSON object to convert
  • file: the name of a file to read the json_str
team <- rjson::fromJSON(file = glue::glue("https://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/seasons/2022/teams/{team_num}"))

As you can see, the returned result is a named list of information about the Atlanta Hawksorganization.

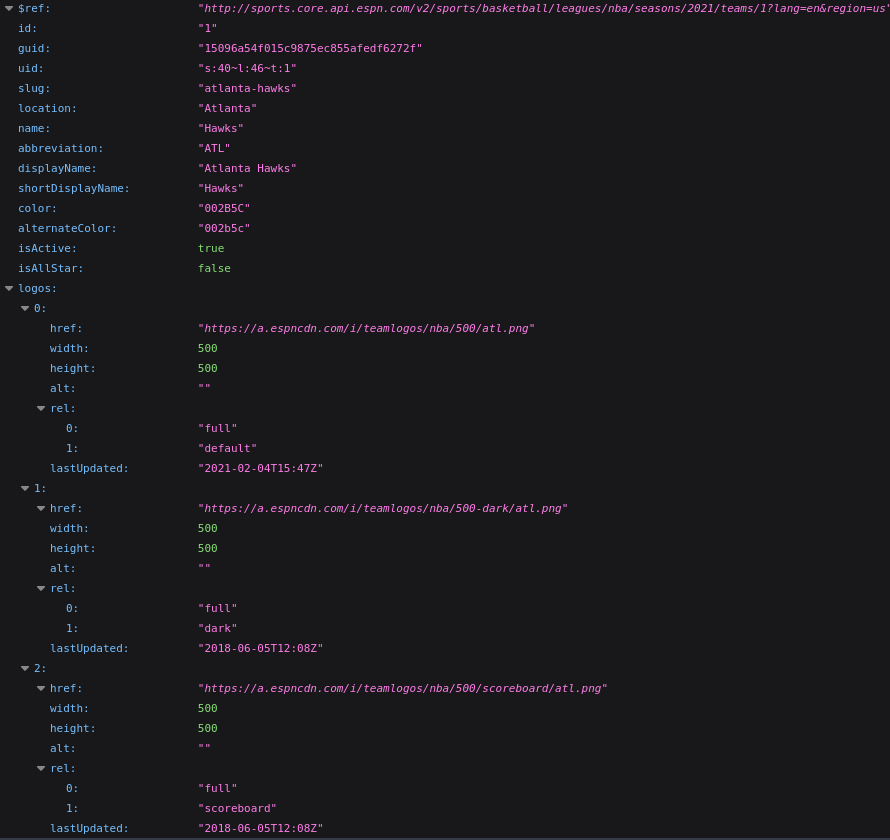

Atlanta Hawks team Info API endpoint result

To retrieve that information in different variables, the possibilities are multiple. For example, you can retrieve the element displayName of the named list with all of the following commands:

  • team$displayName
  • team[['displayName']]
  • or using the pluck function from purrr package pluck(team, 'displayName').

There are likely many other ways, but those 3 are those I know. Let’s retrieve other teams information.

team_name <- pluck(team, "displayName")
team_abbreviation <- pluck(team, "abbreviation") |> tolower()
logo_link <- pluck(team, "logos", 1, "href")
logo_file <- paste0(team_abbreviation,".png")
logo_file_path <- here::here(team_folder, logo_file)

Since we have the team logo link and our ultimate goal is to create a poster for all 30 teams, let’s create a directory for each of them. That directory will be the warehouse to store the team logo, team players headshots … etc.

  # Team folder
team_folder <- here::here("Graphics","nba",team_num)
fs::dir_create(team_folder)

The next step is to download the team logo.

download.file(url = logo_link, destfile = logo_file_path)

Teams athletes information

We have the different information we want about the team. We create the directory to contain the team logo, we downloaded the players headshots for the future poster. Let’s collect team players data. If the team number makes it possible to have access to team information, it also gives access to team players bio links through another API endpoint.

team_athletes <- rjson::fromJSON(file = glue::glue("https://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/seasons/2022/teams/1/athletes"))

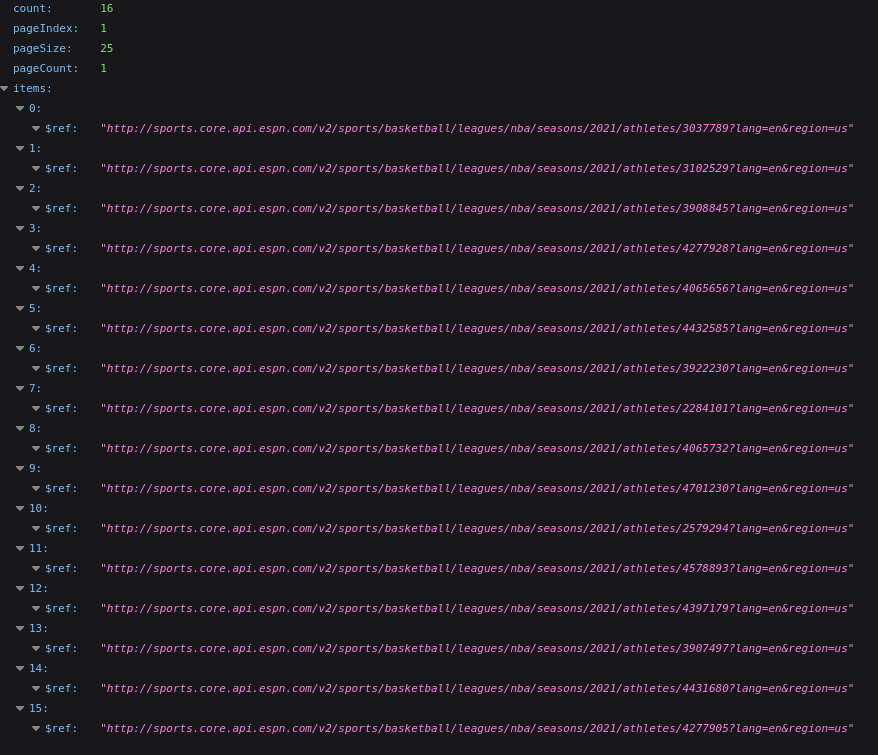

Atlanta Hawks palyers bio links API endpoint

As you can see the items element of the returned list is an array of a named list of a $ref element.

The element contains another API endpoint referring to player detailed information:

  • name
  • date of birth
  • salary
  • …
  • and the more important his headshot link

So let’s retrieve an array of all the team players information API endpoints using purrr package map_chr function.

players_urls <- map_chr(team_athletes$items, ~ pluck(., '$ref'))

Well, we have the list of all API endpoint links for team players. Let’s continue our “individualization” process by collecting the information for a player. We will generalize the process by wrapping it in a function.

get_player_headshot <- function(player_bio_url) {
  player_profil <- rjson::fromJSON(file = player_bio_url)
  player_profil |>
    enframe() |>
    pivot_wider(
      names_from = name,
      values_from = value
    ) |>
    select(id, contains('Name'),any_of("headshot")) |>
    unnest_longer(-any_of("headshot")) |>
    unnest_wider(any_of("headshot"))
}
Important

Note that I use any_of() from tidyselect package multiple times. It is because some of the players4 don’t have a headshot link at the start of the season.

Now, we see the result from a player API endpoint, let’s wrap in a function, and retrieve the data for the complete squad using another purrr function pmap_dfr.

players_headshots <- map_dfr(players_urls, get_player_headshot, .id = "indice")
indice id firstName lastName fullName displayName shortName href alt
1 3037789 Bogdan Bogdanovic Bogdan Bogdanovic Bogdan Bogdanovic B. Bogdanovic https://a.espncdn.com/i/headshots/nba/players/full/3037789.png Bogdan Bogdanovic
2 3102529 Clint Capela Clint Capela Clint Capela C. Capela https://a.espncdn.com/i/headshots/nba/players/full/3102529.png Clint Capela
3 3908845 John Collins John Collins John Collins J. Collins https://a.espncdn.com/i/headshots/nba/players/full/3908845.png John Collins
4 4257 Derrick Favors Derrick Favors Derrick Favors D. Favors https://a.espncdn.com/i/headshots/nba/players/full/4257.png Derrick Favors
5 4065656 Trent Forrest Trent Forrest Trent Forrest T. Forrest https://a.espncdn.com/i/headshots/nba/players/full/4065656.png Trent Forrest
6 4432585 AJ Griffin AJ Griffin AJ Griffin A. Griffin https://a.espncdn.com/i/headshots/nba/players/full/4432585.png AJ Griffin
7 3922230 Aaron Holiday Aaron Holiday Aaron Holiday A. Holiday https://a.espncdn.com/i/headshots/nba/players/full/3922230.png Aaron Holiday
8 2284101 Justin Holiday Justin Holiday Justin Holiday J. Holiday https://a.espncdn.com/i/headshots/nba/players/full/2284101.png Justin Holiday
9 4065732 De'Andre Hunter De'Andre Hunter De'Andre Hunter D. Hunter https://a.espncdn.com/i/headshots/nba/players/full/4065732.png De'Andre Hunter
10 4701230 Jalen Johnson Jalen Johnson Jalen Johnson J. Johnson https://a.espncdn.com/i/headshots/nba/players/full/4701230.png Jalen Johnson
11 2579294 Frank Kaminsky Frank Kaminsky Frank Kaminsky F. Kaminsky https://a.espncdn.com/i/headshots/nba/players/full/2579294.png Frank Kaminsky
12 4578893 Vit Krejci Vit Krejci Vit Krejci V. Krejci https://a.espncdn.com/i/headshots/nba/players/full/4578893.png Vit Krejci
13 4397179 Tyrese Martin Tyrese Martin Tyrese Martin T. Martin https://a.espncdn.com/i/headshots/nba/players/full/4397179.png Tyrese Martin
14 3907497 Dejounte Murray Dejounte Murray Dejounte Murray D. Murray https://a.espncdn.com/i/headshots/nba/players/full/3907497.png Dejounte Murray
15 4431680 Onyeka Okongwu Onyeka Okongwu Onyeka Okongwu O. Okongwu https://a.espncdn.com/i/headshots/nba/players/full/4431680.png Onyeka Okongwu
16 4592304 Donovan Williams Donovan Williams Donovan Williams D. Williams NA NA
17 4277905 Trae Young Trae Young Trae Young T. Young https://a.espncdn.com/i/headshots/nba/players/full/4277905.png Trae Young

Players Headshots

As we now have a dataframe with players information including their headshots links and names, we can upload this headshot to the intended repertory and build an important element for our poster creation, the headshots labels.

players_headshots |>
  select(fullName, href) |>
  pmap_chr(function(fullName, href) {
    if (!is.na(href)) {
      destfile <- here::here(team_folder, fs::path_file(href))
      download.file(url = href, destfile = destfile)
      glue::glue("-label \"{fullName}\" \"{destfile}\"")
    } else {
      NA
    }
  }) -> players_montage

Team Poster montage

Headshots montage

Once we have for our team, its logo, its players headshots uploaded and labels set, we are ready for the next and main steps of this post, the team poster. Of course, as a ggplot aficionado, the wanted result can be made using an approach with geom_image combined with facet_wrap and managing the headshot labels by customizing the strip texts. I have done a similar thing in the past, but the montage command is a more natural and fluid process for this kind of task.

You don’t have to worry about the aspect ratio issue and other things.

To be able to use the montage command, be sure that you have ImageMagick installed on your computer. You can find a complete guide on how to install it according to your Operation System here. To discuss the various options of the montage command, we will need more than a blog post and probably a manual. There are a many resources available on the web. Here is a handy one I have found. The options, we will need are:

  • label to tell montage to label the image with their source filenames
  • font to render text with this font
  • pointsize for the font point size
  • background for the color outside the drawn frame
  • fill for the fill color for text labels and titles
  • mode is for the concatenation mode, which is used to join images together without any extra spaces
  • tile option to ensure all images appear in a single image
Important

The name of the font must be declared among those recognized by the system. To preview font names as defined by the system, you can use another ImageMagick Bash command: convert -list font

Let’s build our montage

players_montage <- players_montage[!is.na(players_montage)] |> paste0(collapse = " ")

# Escape otherwise trouble with space
montage_file <- glue::glue("\"{here::here(team_folder,paste0(team_abbreviation,'_montage.png'))}\"")

# Montage
system(command = glue::glue('montage {players_montage} -font "GothamNarrow-Medium" -pointsize 60 -background "#111111" -fill white -mode Concatenate -tile 4x5+1+1  {montage_file}'))

# Annotation with title
command <- glue::glue('./title_montage.sh "{team_folder}" "{team_name}" {team_abbreviation}')

system(command)

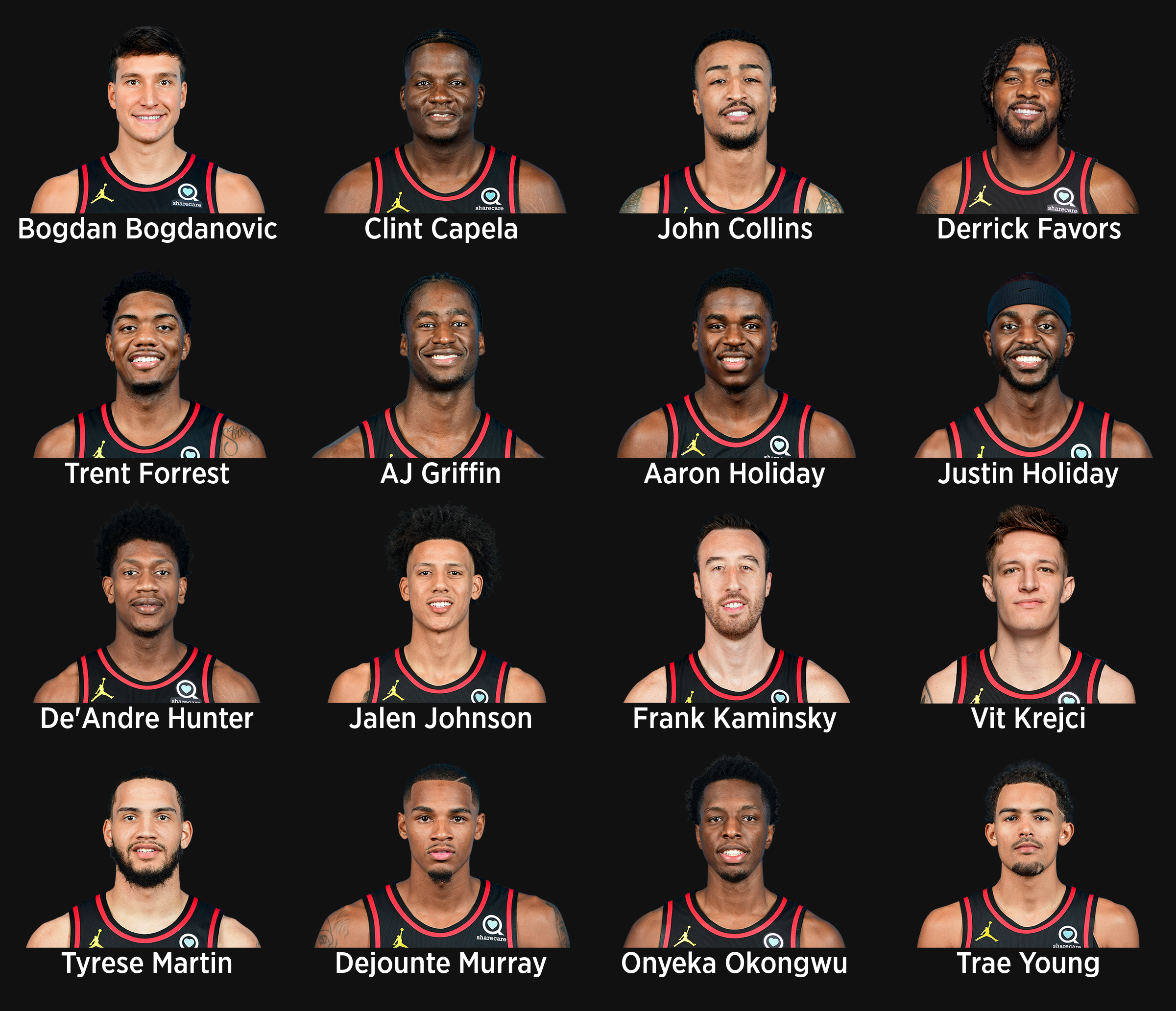

Atlanta Hawks Squad

Well, the result starts to look like the desired one, except for some points. We didn’t insert the team logo, and it would be pretty cool to add the team name, which we previously stored in a variable.

Team logo and name inserting

To insert the team logo and its name using the possibilities Imagemagick gives us, I decide to put all the processes in a Bash script. The job can also be done using the R package magick, but as this post is related to R and Bash I choose again to use that approach.

In our script, we need 3 characteristics for each team whose poster we want to generate. You can see them as function parameters. We have:

  • team_folder
  • team_name
  • team_abbreviation

If in most programming languages paradigm, in the function call, parameters are separated with commas. In Bash, script execution command, the arguments are separated by space.

Example :

./my_script.sh arg1 arg2 arg3

In the script, you can access arg1 with $1, arg2 with $2, and so on. So in my final montage script, I will basically use the convert command. The first step was to expand the initial plot because I want extra space to display the team name.

convert -background  '#111111' "$1"/$3_montage.png -gravity southeast -splice 20x20 -gravity northwest -splice 150x150 -fill white -pointsize 100 -font 'GothamNarrow-Bold' -annotate +300+20 "$2" "$1"/$3_montage.png

The second step is to resize the team logo to have a dimension that satisfies my desire.

Again, feel free to adapt the resizing percentage to your liking.

convert -resize 25% "$1"/$3.png "$1"/$3_cropped.png

Once you have resized the team logo as we want, we will fix it in the headshots montage after making some adjustments to the montage size again.

convert "$1"/$3_montage.png  "$1"/$3_cropped.png -gravity northwest -geometry +150+10 -composite "$1"/$3_montage.png

The complete Bash script is so:

title_montage.sh
#!/bin/bash

#$1 : team_folder
#$2 : team_name
#$3 : team abbreviation used for the logo

# Expand the initial plot with gravity and splice
convert -background  '#111111' "$1"/$3_montage.png -gravity southeast -splice 20x20 -gravity northwest -splice 150x150 -fill white -pointsize 100 -font 'GothamNarrow-Bold' -annotate +300+20 "$2" "$1"/$3_montage.png

# Crop franchise logo
convert -resize 25% "$1"/$3.png "$1"/$3_cropped.png

# Add franchise logo to main plot
convert "$1"/$3_montage.png  "$1"/$3_cropped.png -gravity northwest -geometry +150+10 -composite "$1"/$3_montage.png

# Remove cropped logo
rm "$1"/$3_cropped.png

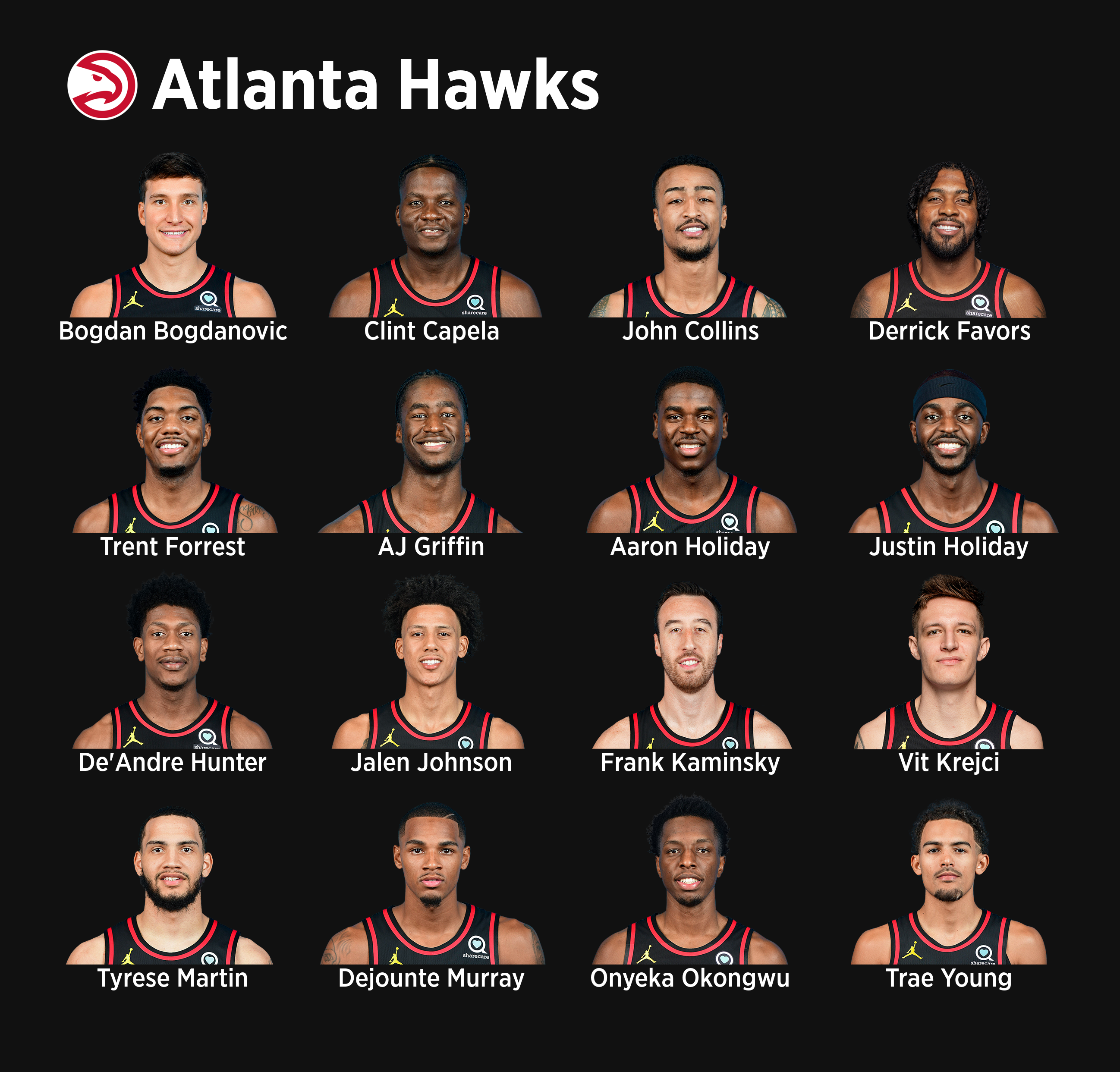

Atlanta Hawks Squad with team logo

Well, we finally arrive at the result we wanted from the beginning. But remember, our goal was to be able to automate the entire poster generation process for all teams.

Parallelize overall teams posters

The first step is to wrap all the processes in a big function that has the team_id as parameter.

Process Function
library(tidyverse)

# For one player
get_player_headshot <- function(player_bio_url) {
  player_profil <- rjson::fromJSON(file = player_bio_url)
  player_profil |>
    enframe() |>
    pivot_wider(
      names_from = name,
      values_from = value
    ) |>
    select(id, contains('Name'),any_of("headshot")) |>
    unnest_longer(-any_of("headshot")) |>
    unnest_wider(any_of("headshot"))
}

generate_team_trombinoscope <-function(team_num) {
  # Team folder
  team_folder <- here::here("Graphics","nba",team_num)
  fs::dir_create(team_folder)

  # Team Informations
  team <- rjson::fromJSON(file = glue::glue("https://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/seasons/2022/teams/{team_num}"))
  team_name <- pluck(team, "displayName")
  team_abbreviation <- pluck(team, "abbreviation") |> tolower()
  logo_link <- pluck(team, "logos", 1, "href")
  logo_file <- paste0(team_abbreviation,".png")
  logo_file_path <- here::here(team_folder, logo_file)

  # Download the team logo
  download.file(url = logo_link, destfile = logo_file_path)

  # Team athletes
  team_athletes <- rjson::fromJSON(file = glue::glue("https://sports.core.api.espn.com/v2/sports/basketball/leagues/nba/seasons/2022/teams/{team_num}/athletes"))

  players_urls <- map_chr(team_athletes$items, ~ pluck(., '$ref'))


  players_headshots <- map_dfr(players_urls, get_player_headshot, .id = "indice")

  players_headshots

  #  Players headshots
  if (!length(fs::dir_ls(team_folder))) {
  players_headshots |>
    select(fullName, href) |>
    pmap_chr(function(fullName, href) {
      if (!is.na(href)) {
        destfile <- here::here(team_folder, fs::path_file(href))
        download.file(url = href, destfile = destfile)
        glue::glue("-label \"{fullName}\" \"{destfile}\"")
      } else {
        NA
      }
    }) -> players_montage
  }

  players_montage <- players_montage[!is.na(players_montage)] |> paste0(collapse = " ")

  # Escape otherwise trouble with space
  montage_file <- glue::glue("\"{here::here(team_folder,paste0(team_abbreviation,'_montage.png'))}\"")
  # Montage
  system(command = glue::glue('montage {players_montage} -font "GothamNarrow-Medium" -pointsize 60 -background "#111111" -fill white -mode Concatenate -tile 4x5+1+1  {montage_file}'))

  # Annotation with title
  command <- glue::glue('./title_montage.sh "{team_folder}" "{team_name}" {team_abbreviation}')
  system(command)

}

Once we have our super function, the process is simply to call that function with the 30 NBA teams ids, again using a function from the purrr package but this time walk as we didn’t wait of returned value.

Of course, we will generate all 30 posters, but it won’t be an image returned.
purrr::walk(1:30, generate_team_trombinoscope)

Well, you can stop there as you have the final posters we so wanted. But this last chunk of code can be sped up using another amazing package, furrr.

This package is your ally for multi-processing tasks. Generally, functions in the purrr package apply a function to each element of a list or atomic vector sequentially5, regardless matter how many CPU cores you need. But thanks to furrr you can remedy that by using multiple sessions6. The advantage is that we speed up the task by 3-4 times.

library(furrr)
plan(multisession, workers = 4) # != plan(sequential)
furrr::future_walk(1:30, generate_team_trombinoscope)

Possibilities of improvements

Of course, perfection doesn’t come from the human world. Just look at Milwaukee Bucks (team_id = 15) poster, and you will understand why this post is not an exemption to our human world. If nothing goes wrong, you are lucky. The font you choose probably didn’t likely turn things wrong. In my case, I have the labels of Antetokounmpo brothers’ collapsing. The problem can be solved by decreasing the point size of font.

Also, something I didn’t like is that for n headshots montage, when n is not a multiple of 20(4 x 5: the montage tile parameter), the last row of headshots is displayed from left to right. For aesthetic reasons, I think they should be placed at the center. It is a real improvement, you could make to those posters.

30 teams Posters

Voilà, it is the end. I hope You enjoyed this post you as I enjoyed writing it. Please let me know in the comments if there is anything you think I should improve on as I plan to publish at least one article per month.

Footnotes

  1. https://quarto.org/docs/computations/execution-options.html#engine-binding↩︎

  2. The API sends the list of all active players for the current season.↩︎

  3. JavaScript Object Notation↩︎

  4. generally rookies↩︎

  5. The function is called in the order defined in the list or the atomic vector.↩︎

  6. cores↩︎
